Fireball Tool Minion Square (Pair)

Description:

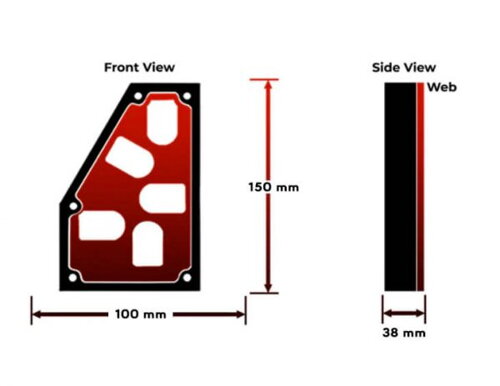

These squares come in a compact configuration for use in tight spaces. Each square measures 150 x 100 x 38 mm, the 100mm width is perfect for picket spacing on gates and fences.

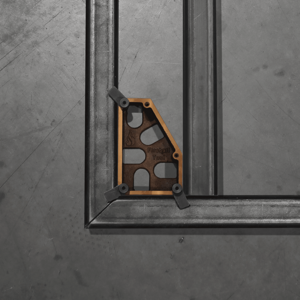

They are the first square we offer which has a built in 60/30 degree angle. The cutout also provides just the right amount of joint access when using it to clamp things at 90 degrees.

Bosses on the square allow mounting of tabs to both sides of the tool.

Squares are sold as a "left and right" pair, each pair will come with 2 squares, 8 tabs, 8 thumbscrews.

 Compact Size For Tight Spaces

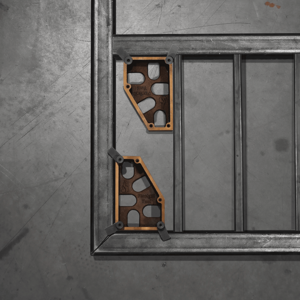

100mm Width Perfect For Picket Spacing

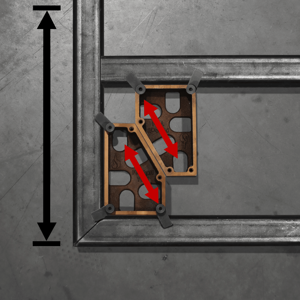

Clamp The Angles Together To Create Custom Spacing

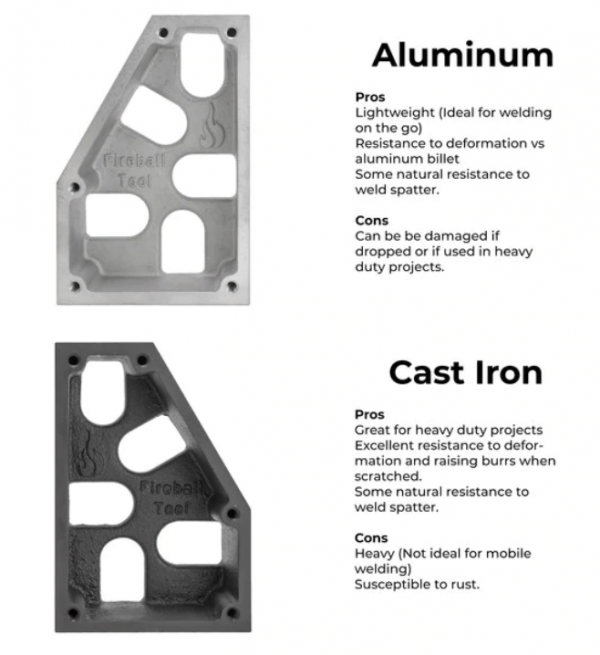

DRAGON SCALE (FE)

Fireball's new Dragon Scale coating provides the corrosion resistance of our previous black oxide finish with the added benefit of enhanced spatter resistance. It's spatter resistance needs to be seen to believed; it out performs even the best weld spatter sprays without the use of any sprays.

included Accessories:

4 Edge Location Tabs
Our revolutionary tabs allow you to align your material up so that you don't even need a welding table! Don't spend thousands on a flat table, just use our squares! Tighten the tabs onto the front or back of your square and you can immediately get to work. Sure, there are different jigs out there, but can they line your material perfectly in seconds?

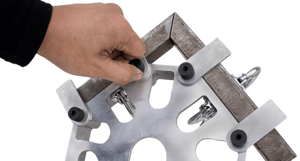

4 Tool-less Thumbscrews
But it doesn't stop there. We reinvented the game by introducing our thumbscrews. Say goodbye to your hex keys and Allen screwdrivers and freely adjust the tabs with only your fingers!

Optional Add-Ons:
Edge Alignment Pins
Install our edge alignment pins on any square to create a large, overhanging edge which can be used to index the square on a different plane. Depending on the square, this allows you to create edges which are 90 degrees (perpendicular), 45 degrees, parallel, and even 60 and 30 degrees from the edge.

• Use it with our Monster squares to create a speed square for layout.
• Use it to hang the square off the edge of a table for working vertical or perpendicular to table surface
• Use it to elevate the squares off the ground or table for extra clearance when you're fitting and welding entire frames
• Tip! If trying to create a parallel edge with the mega square for marking, use our shims to get that perfect distance!
