CleanAIR Pressure Flow Master

Description:

System CleanAIR® Pressure Flow Master can regulate the amount of air coming from a central compressed air distribution system or a compressor and keeps it at a constant level regardless to the changes of inlet pressure. Apart from the airflow regulation, the system has a warning whistle which can warn the user in case of the decrease of inlet pressure below the bottom limit of operation pressure (cca 350 kPa).

Areas of application:

Automotive industry – welding, grinding, surface finishing operations, heavy industrial environments, chemical industry, laboratories.

Features & Benefits:

• Low weight
• Cost – effective operation
• High levels of airflow
• Low pressure warning system

Technical data:

• Air flow 160–250 lpm
• Inlet pressure 400–1 000 kPa
• Weight 280 g
• Noisiness max. 61 dB
• Dimensions 235 mm / 126 mm / 65 mm
• Inlet connection compatible with RECTUS 25, 26 and CEJN 320
• Outlet connection CA40×1/7"
• Certification EN 14594, class 3B

Included:

• CleanAIR® Pressure Flow Master unit
• Noise silencer
• Comfort padded belt Standard

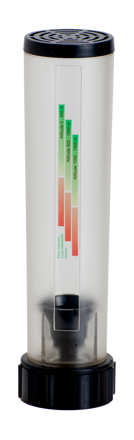

• Flow indicator
